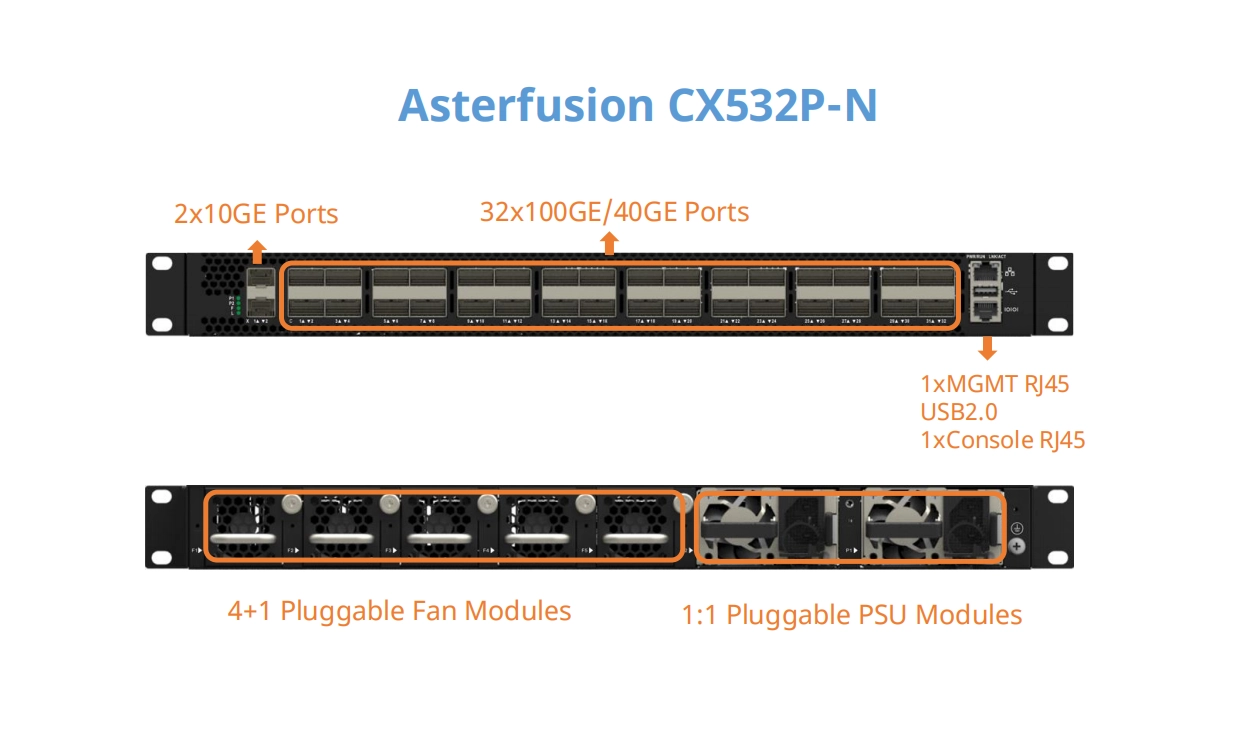

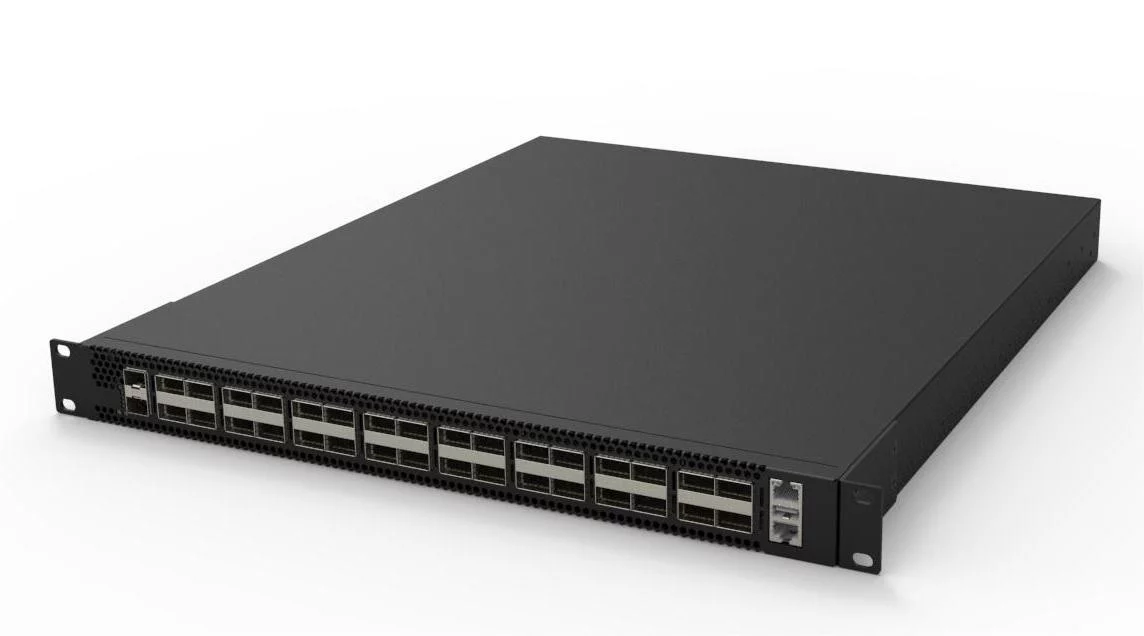

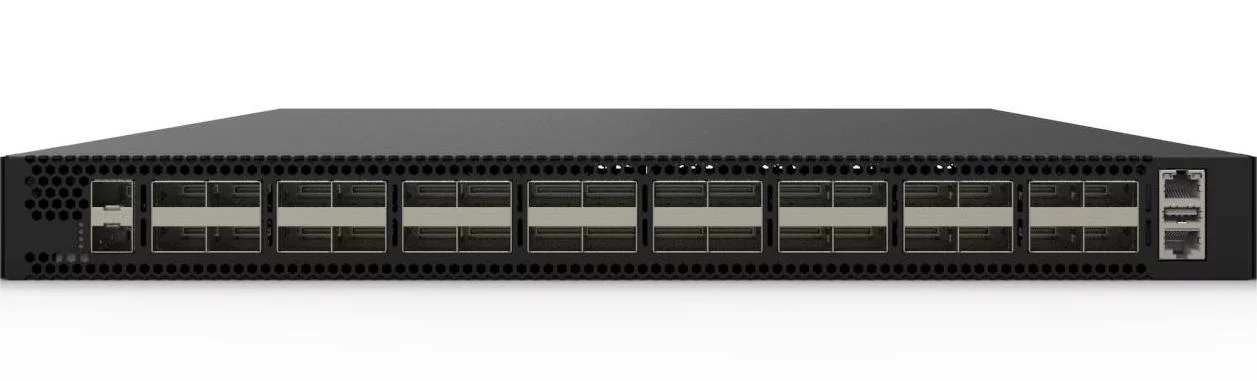

32x100G QSFP28, hot-pluggable 2xPSU, hot-pluggable 5xFANs, front-to-power airflow, AsterNOS preload, MCLAG
Informations complémentaires
| Poids | 9.2 kg |
Dimensions | 440 x 470 x 44 mm |
| HW - Interfaces SFP28 | 32 |
| HW - Switching Chip Model | Intel Broadwell 1508 ou 1527 |
HW - Switching Chip Capacity | 3.2 Tb/s |
| HW - Switching Chip Forwarding Rate | 3.18 Gpps (106 Bytes) |
HW - CPU | x86, Intel Broadwell DE D-1508 |
| HW - Flash | 32GB DDR4; max. 96GB (3x 32GB) |
HW - Management Interface - USB | 1x USB2.0 |
| HW - Management Interface - Console | 1x console RJ45 |
HW - Management Interface - MGMT | 1x MGMT GE RJ45 |
| HW - Electrical Characteristics - Max. Power Consumption | 710W |
| HW - Electrical Characteristics - Number of Power Supply | 1 |
HW - Electrical Characteristics - Fans | 4+1 hot-pluggable |
| HW - Electrical Characteristics - Input Voltage | 100-240 |
HW - Operating Conditions - Temperature | 0 – 45 °C |
| HW - Operating Conditions - Humidity | 5% - 90% |
SW - Basic Seatures | Port information: packet rate, packet quantity, packet loss, error packet Optical module information: module type, module state, optical power, temperature Port configuration: up and down, rate adjustment, MTU, delayed startup |
| SW - Layer 2 Features | LAYER 2 & LAYER3
VLAN: 4k VLAN / Access mode / Trunk mode / VLAN-based
MAC learning
LAG / LACP / STP / MSTP / 9K Jumbo frame
LLDP: Neighborhood discovery& aging / Layer2/3 mode /
Send &receive / Send / Receive / Custom TLV
IPv4 /IPv6:Forwarding/ IPv6 ND Proxy
ARP：Static ARP / Dynamic ARP / Ageing / Renew / Free ARP
Routing: Static routing / BGP / MP-BGP / OSPF
Multipath：ECMP / Max support 252 channels / Elastic hash
DHCP：DHCPv4 / DHCPv6 / DHCPv4/v6 server / DHCPv4/v6
relay/Mult
VRF：256 VRF
/ ARP Proxy |
SW - Layer 3 Features | LAYER 2 & LAYER3
VLAN: 4k VLAN / Access mode / Trunk mode / VLAN-based
MAC learning
LAG / LACP / STP / MSTP / 9K Jumbo frame
LLDP: Neighborhood discovery& aging / Layer2/3 mode /
Send &receive / Send / Receive / Custom TLV
IPv4 /IPv6:Forwarding/ IPv6 ND Proxy
ARP：Static ARP / Dynamic ARP / Ageing / Renew / Free ARP
Routing: Static routing / BGP / MP-BGP / OSPF
Multipath：ECMP / Max support 252 channels / Elastic hash
DHCP：DHCPv4 / DHCPv6 / DHCPv4/v6 server / DHCPv4/v6
relay/Mult
VRF：256 VRF
/ ARP Proxy |
| SW - Security Features | ACL: ACL for IPv4/v6 / DSCP mapping, marking, classify / IACL
/ EACL
Control plane: protection IPv4 CoPP / IPv6 CoPP / Policy
speed limited/AAA :TACACS+ |
SW - Reliability Features | System: Container
MC-LAG: Physical link-based cross-chassis LAG
BFD: BGP protocol association / OSPF protocol association
Network quality analysis: SLA / Track / ICMP-echo
Basic QOS: Multi-Queue scheduling / Flow classification /
DSCP mapping queue / Speed limit strategy / Bandwidth
guarantee / Tail drop / WRED
Advancing QOS:
PFC / ECN / ETS / DCBX
QCN / DCQCN / DCTCP |
| SW - Management Features | Management: CLI / WEBUI / Controller
DevOps Ansible / Python/ONIE install / ZTP / SONiC upgrade /
Warm reboot / Fast reboot / NTPy
Monitoring: SPAN / ERSPAN / SNMP / Syslog / REST API /
gRPC / CRM/Telemetry :INT |
Document technique | Télécharger |
